Client: A leading thin-film deposition research facility
Challenge: Uncertainty in preconditioning and operating a non-conductive IGZO sputtering target on a specific indirect-cooled cathode system.
Solution: Stanford Advanced Materials provided detailed, system-aware technical guidance, bridging material science and equipment engineering.
Result: Enabled the client to establish a safe, effective, and stable deposition process, preventing target damage and ensuring consistent film quality.
Background & Client Challenge
A client approached us with a specific technical challenge. They needed to establish a reliable preconditioning and operational protocol for an In₂O₃/Ga₂O₃/ZnO (IGZO with a 1:1:1 cation ratio) sputtering target. The target was designated for use in a Semicore Equipment, Inc. magnetron cathode configured for a large-format rectangular target (approximately 6 inches in width by 20 inches in length), utilizing an indirect water-cooling design.
The core challenge was not merely the target material’s properties but understanding the complex interaction between the ceramic target and the specific cathode’s design, magnetic field configuration, and power supply type. The client needed to avoid thermal shock, arcing, and ensure long-term target stability.
SAM’s Analysis & Strategic Guidance
Rather than offering a run-of-the-mill solution, our experts took a close look at both the target material and the equipment involved. Their approach was simple and practical, ensuring safe and effective operations.
A. Power Density & System Limitations:
The first step was to set a safe operational baseline. For such indirectly cooled systems with a comparable large-format target area, our team recommended adopting a conservative maximum power density of approximately 25 watts per square inch as a safe starting point. Based on this guideline and the specific tool configuration, the overall power should be limited to a range well below 4 kilowatts during the initial conditioning and for extended stable depositions.
B. The Critical Role of Cathode Design:
Stanford Advanced Materials made it clear that the real challenge is often the equipment rather than the target. They examined several design factors that play a crucial role, such as:
- The strength and layout of the magnetic field.
- How the dark space shields are arranged.
- The overall cooling efficiency of the assembly.
These elements together affect the local power density and how heat is spread out on the target surface. By understanding these factors, a better match between the tool and the target can be achieved.
C. Power Supply Considerations:
The type of power supply is another key concern. Whether the supply is alternating current, direct current, or pulsed direct current can change the behavior of the discharge. Adjusting the power supply—by matching its impedance, for example—helps cut down on reflected power and reduces extra heating from secondary electrons. This is especially important for a non-conductive oxide like Indium Gallium Zinc Oxide, which is more prone to such issues.
D. Collaborative Recommendation:
In addition to technical details, the experts at Stanford Advanced Materials suggested that the research facility talk directly with the tool manufacturer. They stressed that the best operational limits often depend on the specific equipment and process, not just on the target material. This collaborative approach ensures that all aspects of the system are considered when setting up the deposition process.
The SAM Preconditioning Protocol

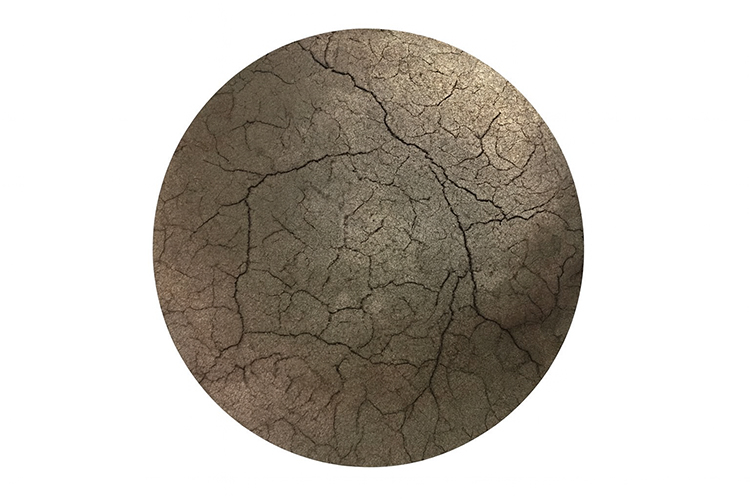

For a smooth start with the new sputtering target, Stanford Advanced Materials designed a clear, easy-to-follow protocol. Their step-by-step method is built to reduce the likelihood of thermal shock and other common pitfalls.
Step 1: Initial Plasma Ignition
The first part of the protocol is to ignite the plasma at the lowest power setting that still maintains a stable discharge. This gentle start helps the target adjust to the conditions gradually.
Step 2: The Initial Soak
Once the plasma is on, the system should be held at this low power until the process stabilizes. A stable condition means that there is no arcing and the power readings (both voltage and current) stay steady. Typically, this soak period can last for five minutes or a bit longer. This waiting period allows for a smooth start without sudden thermal shocks.
Step 3: Controlled Ramp-Up
After achieving a stable start, the power is increased slowly in small increments of 50 to 100 watts. Such a gradual ramp-up avoids sudden changes in temperature and prevents stress on the target.
Step 4: Incremental Soak Periods
At every small increase, the process is paused to let the system adjust. This step-by-step method ensures that the conditions remain in balance. Each soak allows the target and equipment to settle into a new equilibrium before further power is added.
Step 5: Repeat Until the Desired Setpoint
This cycle of ramping and soaking is repeated until the target reaches the required operating conditions. At every step, care is taken never to exceed the recommended power limits as confirmed by detailed consultation with the tool experts.
Outcome & Client Benefit
Following the protocol provided by Stanford Advanced Materials, the research facility achieved several important successes:
- They prevented any damage to the sputtering target. By staying within safe power limits and using the gradual ramp-up, the target was not subjected to harmful thermal shock.
- The deposition process became stable and free of arcing right from the first run. This stability is crucial for achieving repeatable and reliable film qualities.
- The facility gained a comprehensive understanding of how to balance the setup between the target and the tool parameters. With this knowledge, they can now expect smoother processes in future installations.
- The clear, step-by-step procedure boosted the client’s confidence in operating advanced deposition equipment safely and efficiently.
