| Catalog No. | TS1944 |
|---|---|
| Material | TiO2, TiO2-ZrO2-Nb2O5, TiO2-Cr2O3 |
| Appearance | White powder |

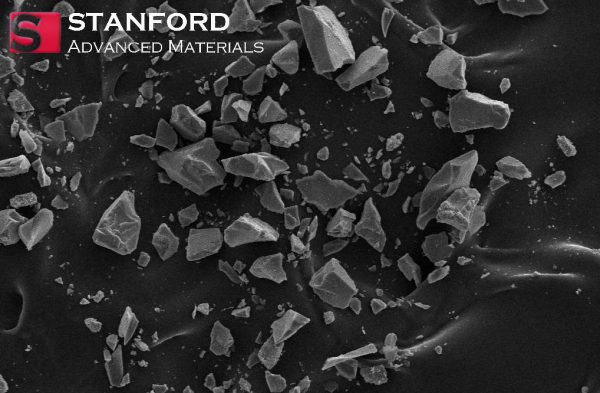

Stanford Advanced Materials (SAM) is a trusted supplier of Titanium dioxide powder. We offer thermal sprays with excellent thermal shock and heat resistance.
Titanium dioxide coatings are tough and compact. With high bonding strength, resistance to particle wear, hard surface wear and oxidation resistance, Titanium dioxide powder has been a popular coating material. Titanium dioxide powder can be used in many applications through chemical and powder metallurgy and thermal spray processes.
| Plasma generator | Plasma Gas Ar(SLPM) | Plasma Gas H₂(SLPM) | Current(A) | Spray Distance(mm) |
| F4 | 45 | 12 | 600 | 120 |
| Product | Item | Compositions (wt. %) | Particle size(μm) | Melting point(ºC) | Hardness of coating |
|
TiO2
|
TNS5331
|
TiO2≥98.0, other oxide<2.0
|
-98 +44 |
1920
|
HRC:50~55
|
| -74 +38 | |||||
| -53 +15 | |||||
| -44 +10 | |||||
| -38 +5 | |||||
|
TiO2-ZrO2-Nb2O5
|
TNS5332
|
ZrO2:20.0, Nb2O5:3.0, TiO2: balance
|
-98 +44 |
N/A
|
N/A
|
| -74 +38 | |||||
| -53 +15 | |||||
| -44 +10 | |||||
| -38 +5 | |||||
|
TiO2-Cr2O3
|
TNS5322
|
Cr2O3:45.0, TiO2: balance
|
-98 +44 |
2300
|
HRC:55~65
|
| -74 +38 | |||||
| -53 +15 | |||||
| -44 +10 | |||||
| -38 +5 |
– Titanium dioxide powder can be used for spraying of pump seals, plungers, marine propeller shafts, bearing sleeves, etc.
– Used as an infrared and far-infrared coating for electric heaters;
– Used for spraying of solar absorption devices, electric heaters, and other components.
Titanium dioxide powder is packaged in vacuum aluminum foil bags or filled with inert gas (Ar).
-1 kg/bag
-20 kg/Metal can
-100 kg and more / Steel drum, or customized
All packaging materials are suitable for air, sea and road freight.
