Our Nickel Copper (NiCu) Rotary Sputtering Targets deposit functional alloy films by precisely controlling the nickel-to-copper ratio. This enables coatings that combine high conductivity, excellent corrosion resistance, and inherent anti-microbial properties for demanding applications in electronics, marine engineering, and healthcare.
| Material | Nickel Copper Alloy (NiCu) |
| Standard Composition | Customizable (e.g., Ni-90Cu, Monel-type ratios) |
| Purity | ≥ 99.9% (Metal Basis) |

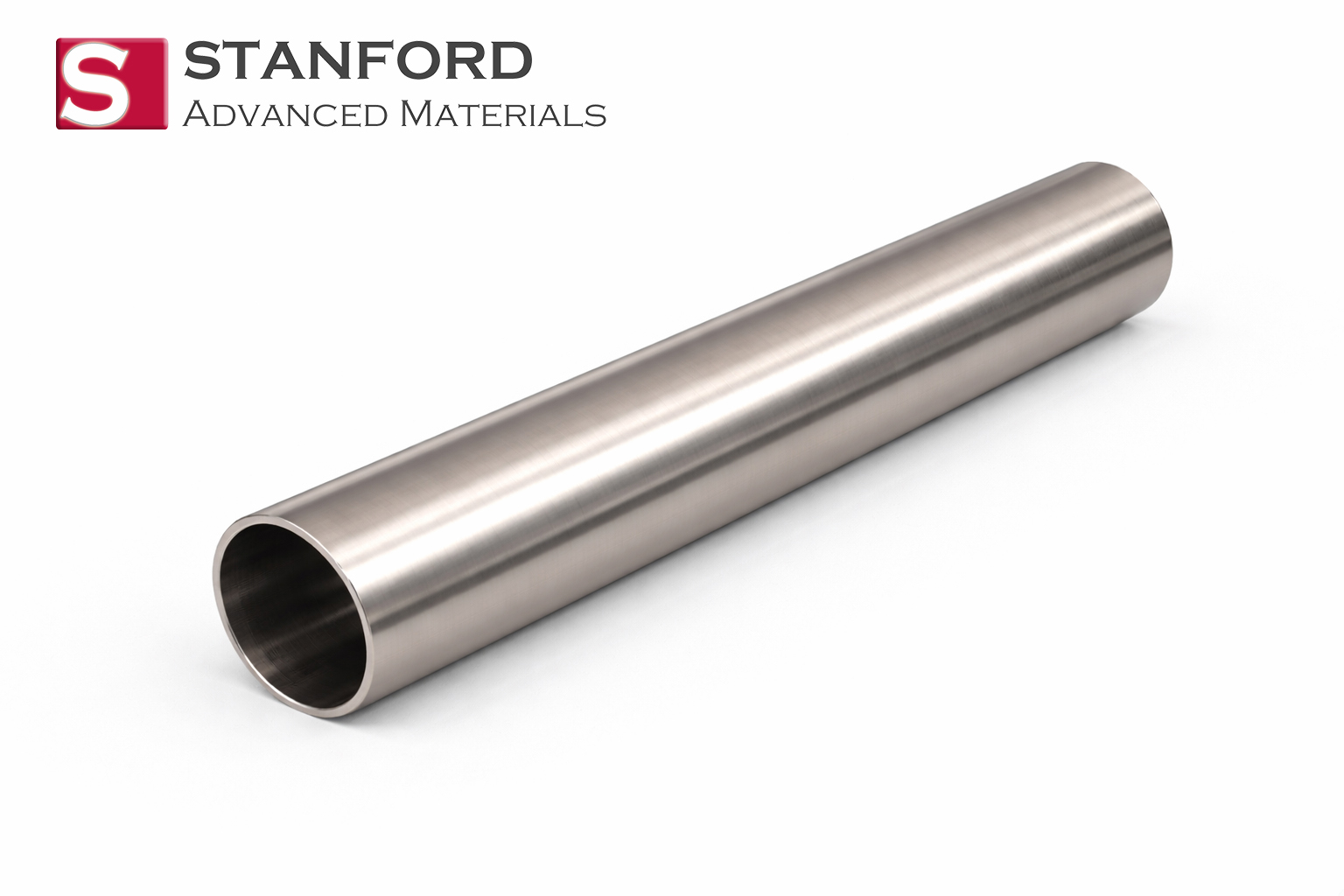

| Form | Rotary Sputtering Target (Tubular) |
Key Advantage: Tunable alloy composition allows optimization of film properties—from high conductivity to enhanced durability and bio-fouling resistance.
Customization: Ni:Cu ratio, tube dimensions (OD, ID, Length), and bonding fully customizable.
Typical Applications: Conductive & corrosion-resistant layers in electronics, anti-fouling/anti-microbial coatings for marine & medical surfaces, and decorative/protective finishes.
For detailed evaluation and procurement (Standard Reference: ST11203).
| Parameter | Specification / Typical Value |
|---|---|
| Material | Nickel Copper Alloy (NiCu) |
| Composition Range | Fully customizable (e.g., 10-90% Cu balance Ni) |
| Purity (Metal Basis) | ≥ 99.9% |
| Density | ≥ 8.88 g/cm³ (Alloy dependent) |
| Electrical Resistivity | Low, tunable with composition (e.g., Ni-30Cu: ~34 µΩ·cm) |
| Standard Shape | Tubular (Rotary Target) |
| Key Dimensions | Custom OD, ID, Length |
| Sputtering Method | DC Magnetron (Optimized) |
| Bonding/Integration | Compatible with rotary cathode systems |
| Certification | Certificate of Composition (CoC) provided |
Nickel-copper alloys, notably Monel (Ni-30Cu) types, are renowned for corrosion resistance in seawater, acids, and high temperatures. Sputtered NiCu films provide this durability as a thin, adherent coating, protecting substrates in:
Copper ions are known to disrupt microbial cells. Incorporating copper into a nickel matrix via a NiCu alloy film creates a durable, inherently anti-microbial surface. This is valuable for:
For coating large or multiple components (e.g., architectural fittings, long pipelines, batch medical parts), rotary targets deliver:
We verify the precise Ni:Cu ratio using Inductively Coupled Plasma (ICP) analysis. Microstructural homogeneity is confirmed via SEM/EDS mapping to ensure a uniform solid solution, which is critical for consistent film performance, especially in corrosion and anti-microbial applications.
Get a Formal Quote or Composition Consultation
To specify the optimal NiCu alloy for your application, please provide:
