MU0085 Molybdenum Crucible

Catalog No. Mo-3N5-MC
Size 10-500mm OD x 10-600mm L
Standard ASTM B387
Purity Mo≥99.95%
Density 9.8 – 10.2 g/cc
Surface Finish turning, Polishing

Molybdenum crucibles are available in various forms, purities, sizes, and prices. Stanford Advanced Materials (SAM) is a trusted sputtering target supplier, and we also manufacture evaporation materials and containers.




Description

Molybdenum Crucible Description

Molybdenum crucible can be produced with sintering purposes (density of 9.8-10g/cc) or forging purposes (up to 10.2g/cc). Customized shapes for Mo crucibles include, but are not limited to, oval, tapered, bottomless, or round mouth.

Molybdenum crucibles can be used in LED Sapphire Crystal Growing and Chemical industry. SAM can provide customized molybdenum crucibles according to customer’s drawings. We can also provide solutions for your research. SAM has a vertically integrated supply chain with the capability to refine molybdenum powder, press and sinter ingots, roll input material for spinning, spinning to form, trim, and clean molybdenum and molybdenum alloy crucibles. SAM can manufacture a wide-range of diameter, height and thickness crucible sizes to suit our customers’ needs.

Molybdenum Crucible

Molybdenum Crucible Specifications

Condition

Size (mm)

Tolerance (mm)

Diameter (mm)

Height (mm)

Diameter (mm)

Height (mm)

Sintering

10-500

10-600

+/-5

+/-5

Forging

10-130

10-200

+/-1

+/-2

Material Type Molybdenum
Symbol Mo
Color/Appearance Grey, Metallic
Melting Point  2,617 °C
Comments Films smooth, hard. Careful degas required.
Density 10280 kg/m3

Molybdenum Crucible Applications

With a high corrosion resistance to most acids and many molten materials such as glass or metals, molybdenum crucibles are ideal for the metallurgy, mechanism, and rare earth smelting industries. They can withstand vacuum thermal evaporation, nuclear fuel sintering, and capacitor sintering. Molybdenum Mo crucibles are also seeing an increased use in the growing high technology industry and in crystalloid materials.

Molybdenum Crucible Packaging

Our high performance molybdenum Mo crucibles are wrapped in foam and packaged in plywood cases to ensure safe storage and transportation.

Submit your review
1
2
3
4
5
Submit

Cancel

Create your own review

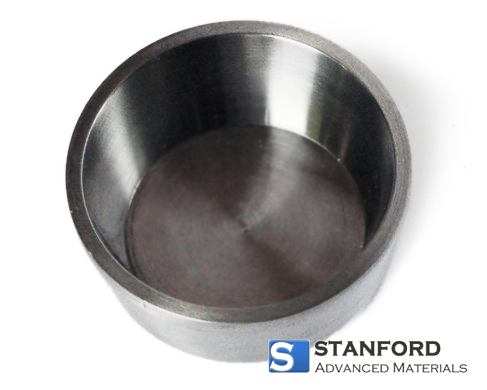

Zirconium Crucible (Zr Crucible)
