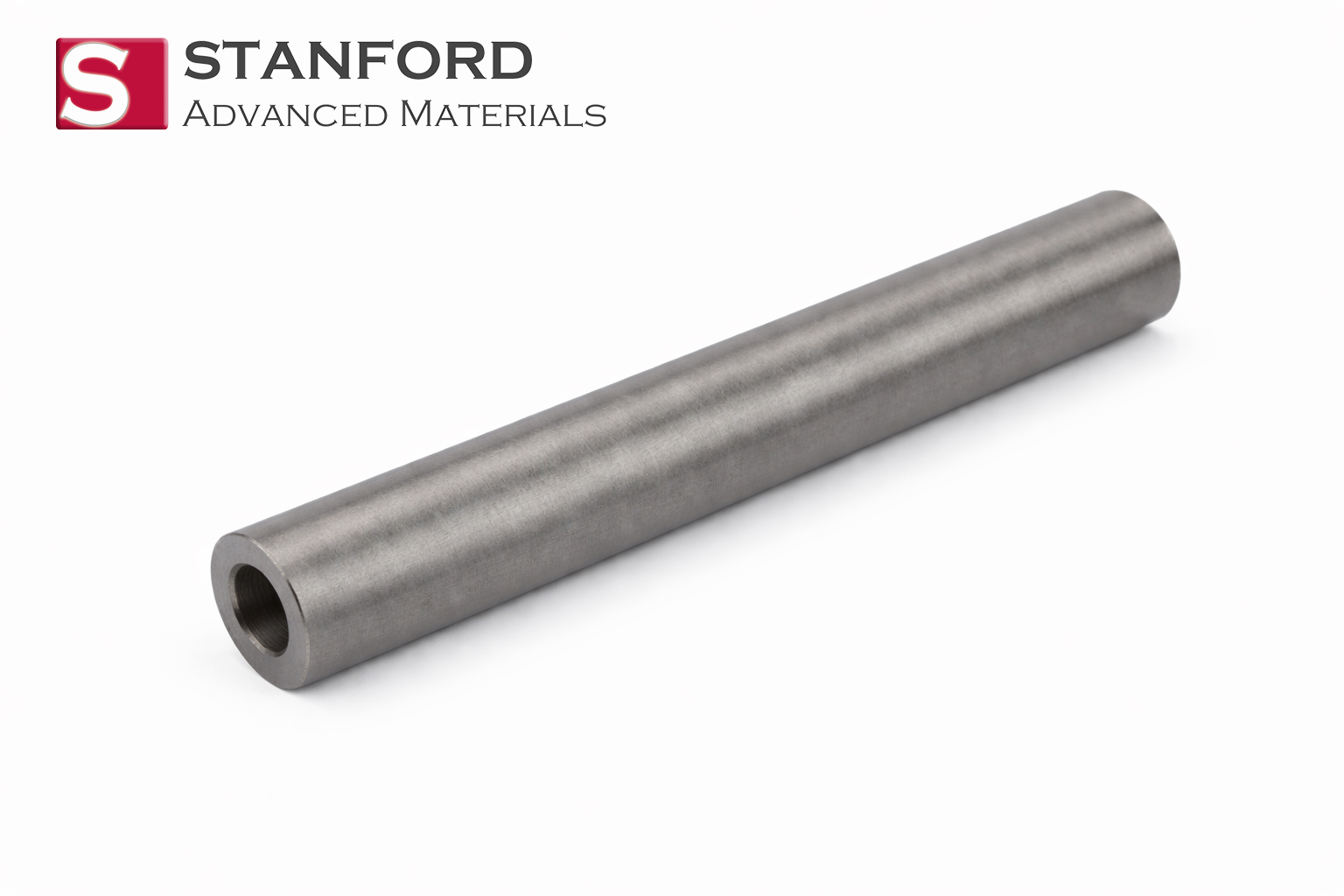

Our high-purity Iron Rotary Sputtering Targets are designed for efficient, large-area deposition of iron films, which serve as the foundation for soft magnetic layers, corrosion-resistant coatings, and alloy precursor films. The rotary design ensures maximum material utilization and excellent film uniformity in high-volume or large-substrate coating processes.
| Material | Iron (Fe) |
| Purity | ≥ 99.95% (3N5) Standard |
| Form | Rotary Sputtering Target (Tubular) |
| Key Benefit | High Material Utilization & Extended Target Life |
Key Advantage: High density and purity ensure stable, low-particle sputtering, essential for depositing uniform films with consistent magnetic or mechanical properties.
Customization: Purity (99.9%, 99.95%, 99.99%), tube dimensions (OD, ID, Length), and bonding options fully customizable.
Typical Applications: Soft magnetic underlayers for data storage, corrosion-resistant protective coatings, alloy targets (e.g., FeCr, FeNi) precursor, and research on iron-based thin films.
For detailed evaluation and procurement (Standard Reference: ST11188).
| Parameter | Specification / Typical Value |
|---|---|
| Material | Iron (Fe) |
| Purity (Standard) | ≥ 99.95% |
| Available Purity | 99.9%, 99.95%, 99.99% |
| Density | ≥ 7.85 g/cm³ |
| Crystal Structure | Body-Centered Cubic (BCC) |
| Magnetization (Saturation, Bs) | ~2.15 T (Bulk) |
| Standard Shape | Tubular (Seamless Cylinder) |
| Key Dimensions | Custom OD, ID, Length |
| Electrical Resistivity | ~9.7 µΩ·cm (20°C) |
| Melting Point | 1538 °C |
| Thermal Conductivity | 80 W/(m·K) |
| Sputtering Method | DC Magnetron (Optimized) |
| Bonding/Integration | Compatible with rotary cathode cooling mandrels |
| Certification | Certificate of Analysis (CoA) provided |
1. A Versatile Workhorse for Functional Films
Iron is a fundamental material in thin-film technology due to its favorable magnetic properties, mechanical strength, and relatively low cost. When deposited via sputtering, iron films can be tailored for diverse functions:
2. Why Choose a Rotary Iron Target?
For applications requiring coverage of large areas (e.g., sheet metal, large batches of parts) or high uniformity on continuous webs, rotary targets are the industrial standard:
3. Purity and Microstructure Matter
For magnetic applications, trace impurities (e.g., C, O, S) can pin domain walls and degrade soft magnetic properties. Our ≥99.95% purity standard minimizes these. Additionally, a fine and uniform grain structure in the target minimizes arcing during sputtering, leading to smoother, lower-defect films.
Each iron rotary target is produced from vacuum-melted stock to control interstitial impurities. Dimensional accuracy (OD, ID, concentricity, straightness) is verified with precision instruments. Chemical analysis via Glow Discharge Mass Spectrometry (GDMS) or Combustion Analysis is performed for critical purity grades, with results provided in the CoA.
Get a Formal Quote or Dimensional Data Sheet
For a precise quotation and to ensure compatibility, please provide:
