| Catalog No. | ST0896 |
| Material | LSMO |
| Purity | 99.9% |
| Shape | Planar Disc |

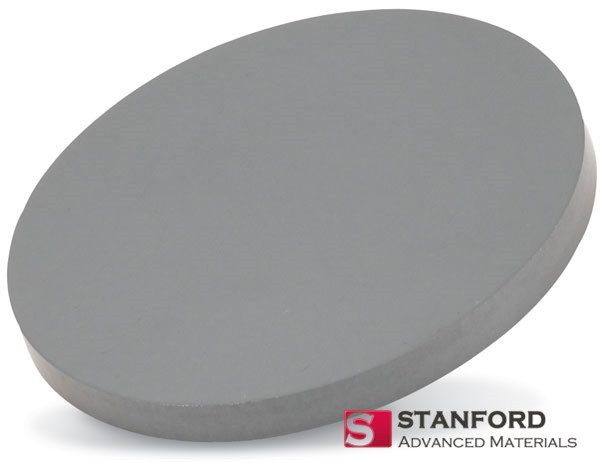

The Lanthanum Strontium Manganite (LSMO) Target is a sophisticated perovskite oxide with the chemical formula La₁₋ₓSrₓMnO₃. By substituting Sr²⁺ for La³⁺, mixed valency is introduced in manganese ions (Mn³⁺/Mn⁴⁺), resulting in exceptional electronic and magnetic characteristics. LSMO boasts a well-ordered crystalline structure, typically achieved through solid-state reactions or sol-gel techniques, followed by high-temperature sintering to ensure phase purity and density. At optimal doping levels (usually x ≈ 0.3), LSMO exhibits metallic conductivity with low resistivity ranging from 10⁻³ to 10⁻² Ω·cm. Its notable colossal magnetoresistance (CMR) effect, where electrical resistance drastically drops in a magnetic field, makes it invaluable for room-temperature spintronic devices. Additionally, LSMO offers high thermal stability, chemical resistance in standard deposition environments, and excellent adhesion to oxide substrates like SrTiO₃ and LaAlO₃. With a density of approximately 6.3–6.5 g/cm³ and a thermal expansion coefficient between 10–12 × 10⁻⁶/K, it is compatible with various thin-film deposition methods, including pulsed laser deposition (PLD), RF sputtering, and molecular beam epitaxy (MBE). Its infrared transparency and high dielectric properties further enhance its utility in multifunctional oxide devices.
Material Composition: La₁₋ₓSrₓMnO₃
Purity: 99.9%
Shape: Planar Disc
Density: 6.3–6.5 g/cm³
| Element | Content |
|---|---|
| La | 80 |
| Sr | 10 |
| MnO | 10 |
Note: Specifications are based on theoretical data. For customized requirements and detailed inquiries, please contact us.
The LSMO Target is versatile, finding extensive use in advanced technological applications due to its outstanding electronic, magnetic, and structural properties. Key applications include:
Our LSMO Targets are meticulously packaged to maintain product integrity during storage and transit. Depending on the size, smaller targets are securely placed in polypropylene (PP) boxes, while larger ones are shipped in custom-built wooden crates. We prioritize customized packaging solutions and use appropriate cushioning materials to ensure maximum protection.
Packaging Options:
Q1: Which deposition techniques are compatible with LSMO Targets?
A1: LSMO Targets are compatible with pulsed laser deposition (PLD), RF magnetron sputtering, and other physical vapor deposition (PVD) methods.
Q2: What substrates are typically used with LSMO films?
A2: LSMO thin films are commonly deposited on perovskite substrates like SrTiO₃, LaAlO₃, and NdGaO₃ to achieve epitaxial growth.
Q3: What are the key properties of LSMO thin films?
A3: LSMO films exhibit colossal magnetoresistance (CMR), high spin polarization, and excellent electrical conductivity, making them ideal for spintronic and oxide electronic applications.
| Property | LSMO Target (La₀.₇Sr₀.₃MnO₃) | LaMnO₃ Target | LSMO/RGO Composite |
|---|---|---|---|
| Purity | ≥99.95% (MBE/PVD synthesis) | ≥99.9% (sol-gel method) | ≥99.8% (with reduced graphene oxide) |
| Density | 6.2–6.5 g/cm³ (95% theoretical) | 5.6–5.8 g/cm³ (polycrystalline) | 5.0–5.5 g/cm³ (composite) |
| Thermal Stability | ≤600°C (no phase decomposition) | ≤550°C (prone to Sr volatilization) | ≤600°C (similar to LSMO) |
| Electrical Conductivity | 50–200 S/cm (n-type) | 10–50 S/cm (undoped) | Enhanced conductivity (with RGO) |
| Magnetoresistance | -25% (at 40 K, 5 kOe) | -10% (polycrystalline) | -5% (room temperature, 5 kOe) |
| Sputtering Rate | 100–150 nm/min (RF, 400 W) | 80–120 nm/min (DC, 300 W) | 120–180 nm/min (RF, 500 W) |
| Magnetic Anisotropy | Vertical magnetic anisotropy (260–300 K) | Weak anisotropy (bulk) | N/A |
| Key Applications | Flexible Al-air batteries, spintronics | Basic research, sensors | Dye-sensitized solar cells (6.56% efficiency) |
Physical Properties:
Chemical Properties:
Lanthanum is a soft, silvery-white rare earth metal known for its high melting point and excellent electrical conductivity. It forms stable oxide compounds and is extensively used in catalysts, phosphors, and battery technologies, including NiMH batteries. Lanthanum oxide is critical for high-temperature applications and enhances the performance and stability of solid oxide fuel cells (SOFCs).
Industrial Applications:
Physical Properties:
Chemical Properties:
Strontium is a soft, silvery alkaline earth metal highly reactive with water and air. It primarily forms compounds like strontium carbonate, used in electronics and ceramics. Strontium is also known for producing red flames in fireworks and has applications in certain medical treatments. In materials science, strontium enhances ionic conductivity in ceramics and improves the electrochemical performance of SOFCs when alloyed with lanthanum.
Industrial Applications:
Physical Properties:
Chemical Properties:
Manganese is a hard, brittle transition metal essential for steel production, enhancing hardness, stiffness, and strength. It is widely utilized in battery manufacturing, ceramics, fertilizers, and electronic materials. In advanced materials, manganese is a key component in magnetic and oxide compounds like LSMO, which are vital for spintronics, magnetic sensors, and memory devices due to their colossal magnetoresistance and functional properties.
Industrial Applications:
